High Quality Patient Monitor

Patient Monitor Parameter
1.Standard Parameter:
ECG、HR、RESP、 SPO2、PR、NIBP、TEMP
2.Optional Parameter:
ETCO2、IBP

Send Inquiry Now

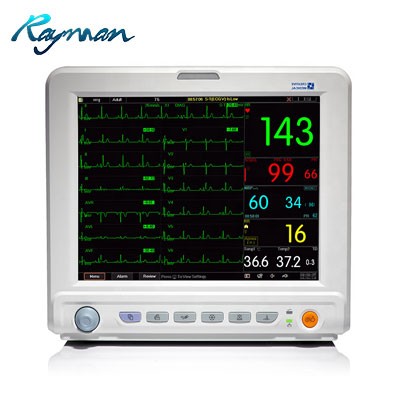

                  Multi-Parameter Patient Monitor



Model:RMUP-7000 Multi-parameter Patient Monitor


Standard configuration parameters: ECG respiration (RESP), non-invasive blood pressure (NIBP),

pulse saturation (Sp02), pulse rate (PR), temperature (TEMP)

Optional parameters: end-respiratory carbon dioxide (EtCO2) (Weikang CO2(mainstream & side-flow))

Screen type: touch screen

Display: liquid crystal

Screen size: 12.1-inch widescreen or standard screen, full touch operation, high resolution, wide

view, bright and bright, 400 lumens

Display function: more than 8 parameter waveforms can be displayed on the same screen, with

the function of displaying blood pressure data list


Any Inquiry on Patient Monitor price,Please kindly Contact us now,you can get the quickly reply,

free quotation,professional service at once.

1).Send Inquiry in this website or Contact us online in this website,

2).Contact us by Email rayman@sdrayman.com

or Whatsapp/Phone +8613205383163 directly.




1.The highest display of 9 waves in the same screen;

2.Various display interfaces, including: standard interface, large font interface, seven-lead ECG screen

interface, blood pressure list interface, trend coexistence interface, etc

3.Support 3/5 lead lines;

4.Alarm event playback, NIBP data review, pulse oxygen event review, ECG waveform holographic

review, trend review and so on

5.ST segment is measured manually


Arrhythmia analysis and S-T segment measurement

2000 groups event, ARR and SpO2 storage

Up to 9 waveforms simulteneously display

12.1” high resolution TFT display with LED backlight

2000-hour data trends with graphic and tabular view

Dual IBP with cardiac output

72-hour ECG waveform data storage and recall

Visual and audible alarms; Networking capability

2000 groups event, ARR and SpO2 storage

Adult/Pediatric/Neonate measurement modes



ECG

1.Self-developed ECG monitoring technology is adopted to support 3/5 ECG monitoring:

2.The use of advanced electric knife, anti-fibrillation technology, safe and reliable use

SpO2

1.Self-developed advanced MoveOxy® anti-motion technology provides accurate measurement,

suitable for monitoring in a variety of weak perfusion situations;

2.Support the blood oxygen sensor with silicone soft finger sleeve, which meets the requirements of IPX7

3.Optional nellcor blood oxygen

NIBP

1.The oscilloscope method is adopted to measure, with high accuracy and anti-motion.

2.Support vein assisted puncture mode:

3.Support manual, automatic, continuous and serial measurement modes;

4.Support double sensor overvoltage protection technology;

5.Suntai blood pressure is optional

CO2

1.Support the world's leading side flow/mainstream end-respiratory monitoring, microflow sampling 50ml/min;

2.Support atmospheric pressure automatic compensation and automatic zero.etailed Image
